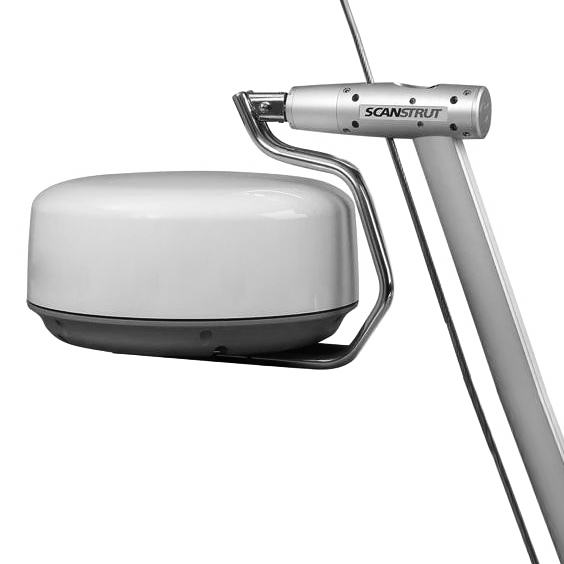

Scanstrut LMB-F1 Self-leveling Radar support for Backstay

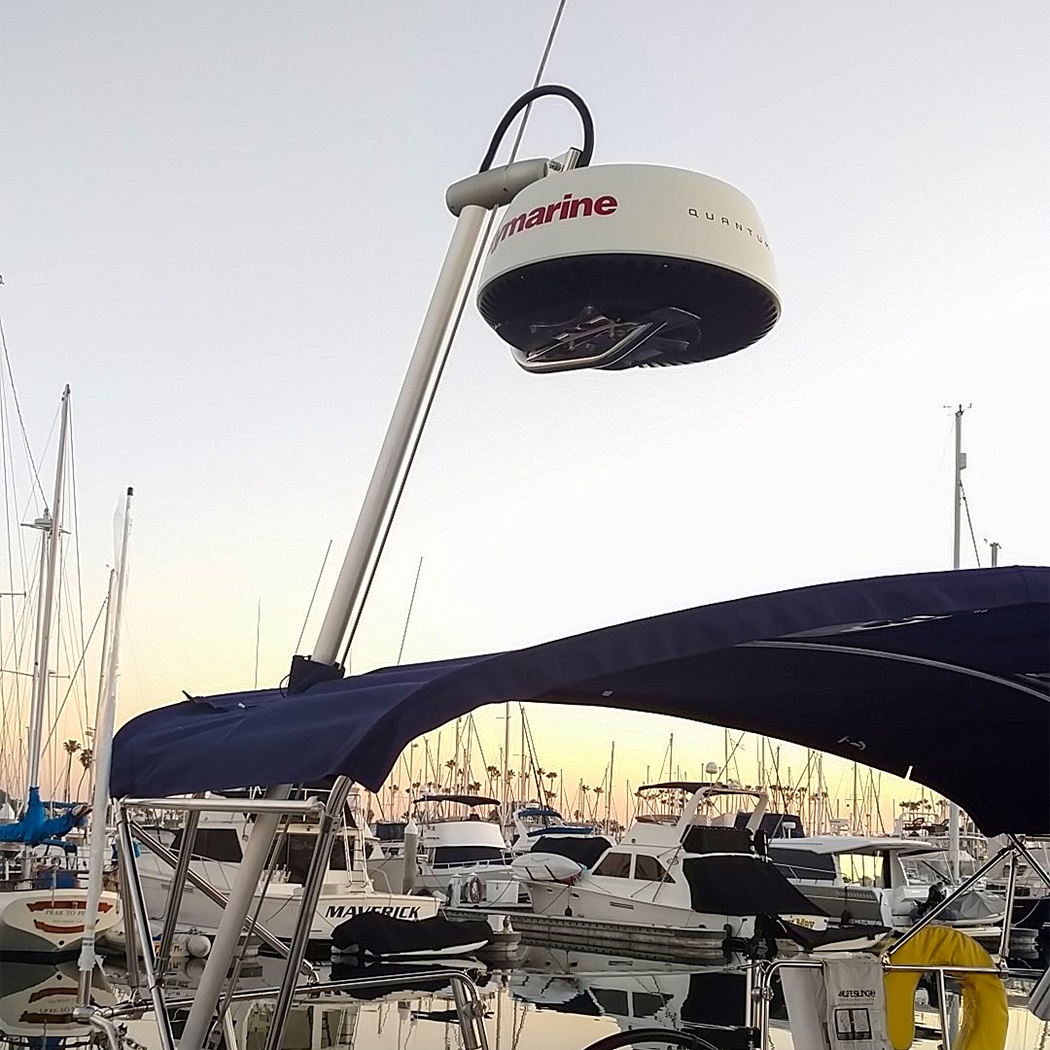

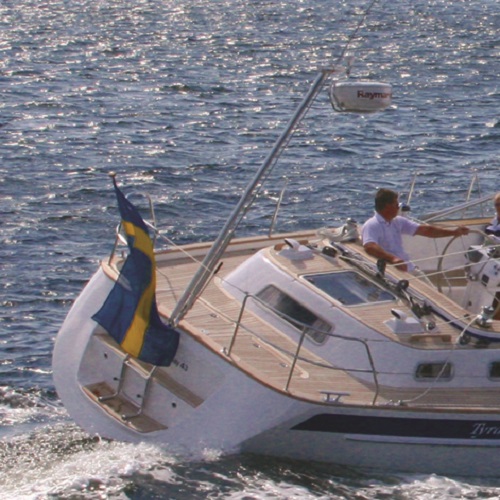

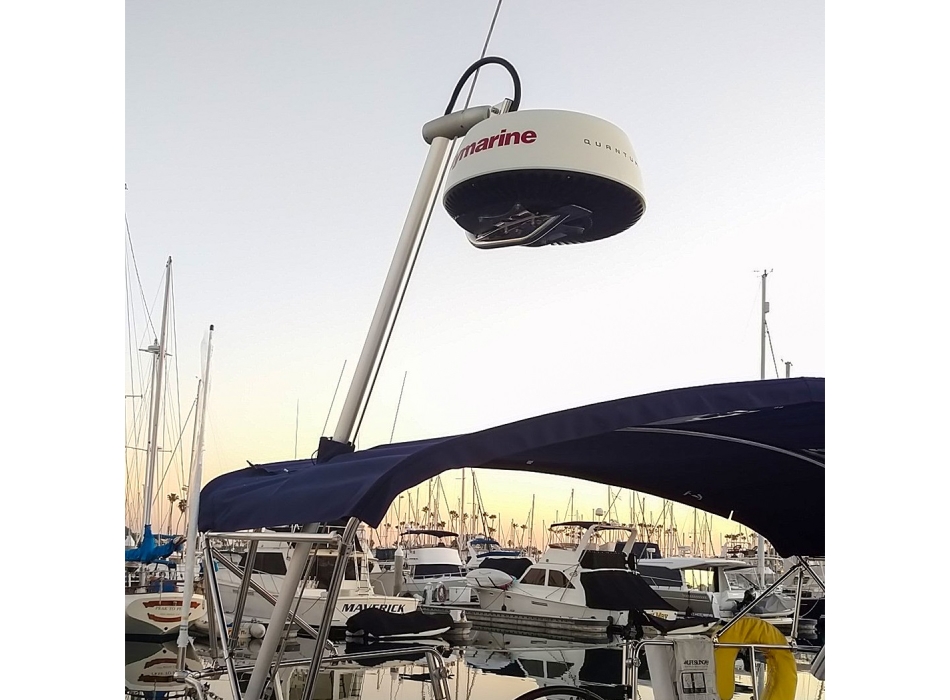

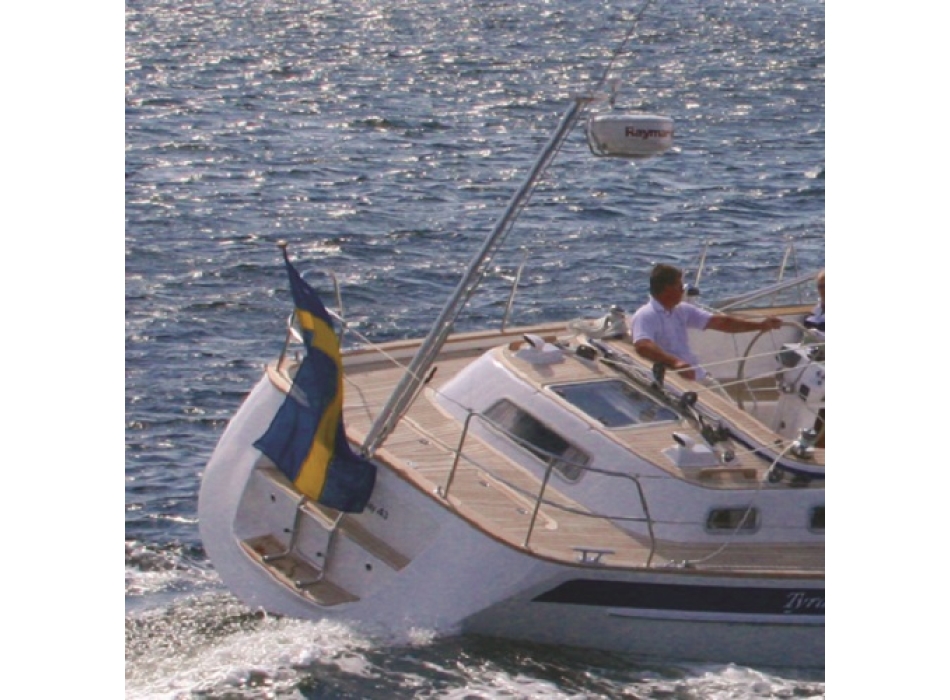

Installation on the stern stay

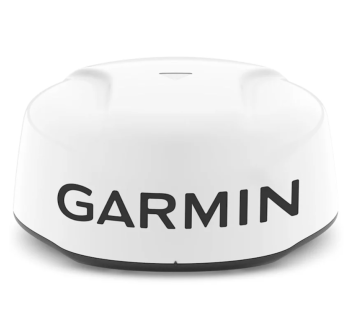

Compatible with Raymarine, Garmin, Lowrance, Simrad and B&G Radar
Maximize the performance of your radar
2.6 m (8'6 ”) high, it mounts forward of the backstay, keeping the radar away from any interference, leaving a deck clear and free from obstructions. Constructed from the finest marine aluminum, designed to fit the latest radar from Garmin, Raymarine and B&G.
Product information.
Hydraulic damping
The main leveling unit is equipped with a tuned damping system that reacts to major changes in the boat's heel angle. It is completely maintenance free and requires no power.

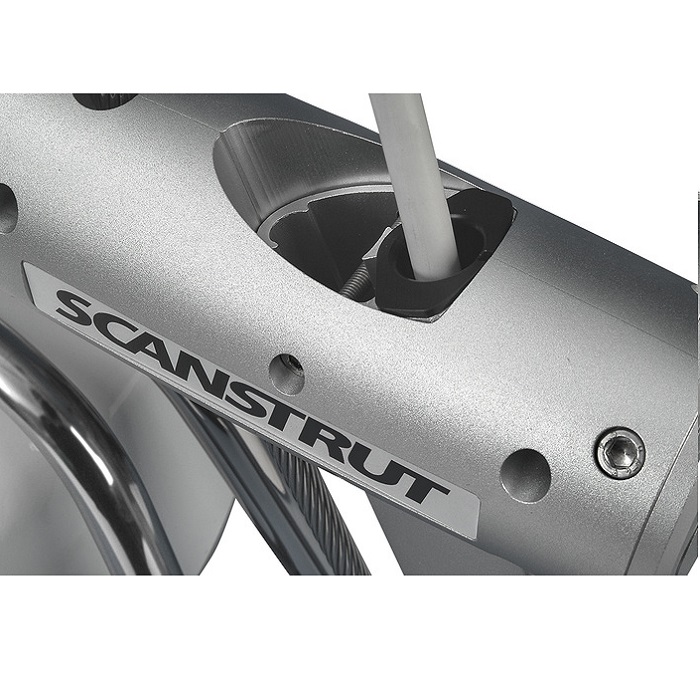

Custom Mounting Pole: 2.6m (8'6 ”) aluminum mounting pole, supplied in 2 lengths with concealed fitting. Cables are routed along a cable channel for a tidy installation. Extensions are available.
High strength universal base for pole mounting: Eliminates the load on the backstay. The base can be mounted on deck, transom or chain plate.

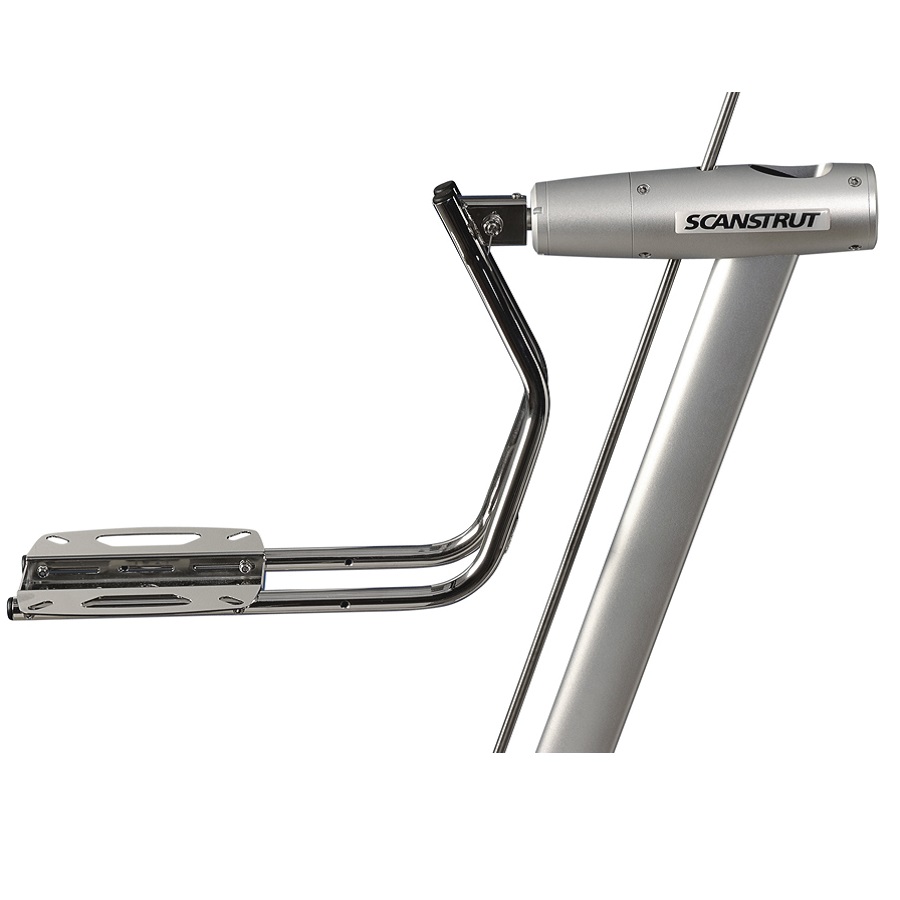

Suitable for any yacht: The steel radome cradle has fine adjustment for backstay angle and the product can be installed on both adjustable and split backstay (see faq for more information).
Backstay Nylon Bushing Supplied: Fastens around the backstay allowing you to adjust the cable tension.
Mount your radar higher: Additional lengths available of 0.6m and 1.3m to mount your radar higher
