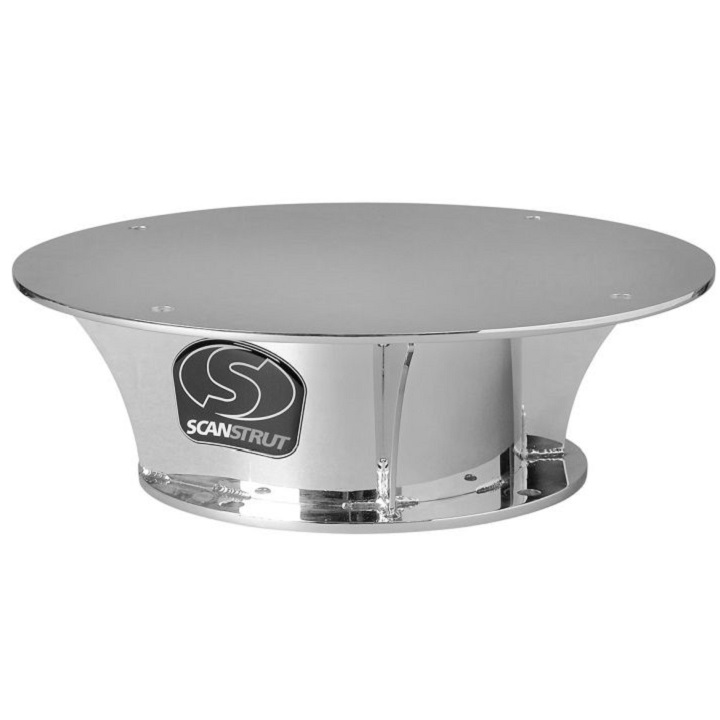

Scanstrut SC80 Stainless steel support for Satcom antennas

Code: SC80

(0)

€ 1.259,00 € 1.520,12 -17%

quantity

add to favorites

Scanstrut SC80 supports for TVSAT and Satphone antennas

Manufactured from 316 marine stainless steel and is mirror polished for a hi-end finish.

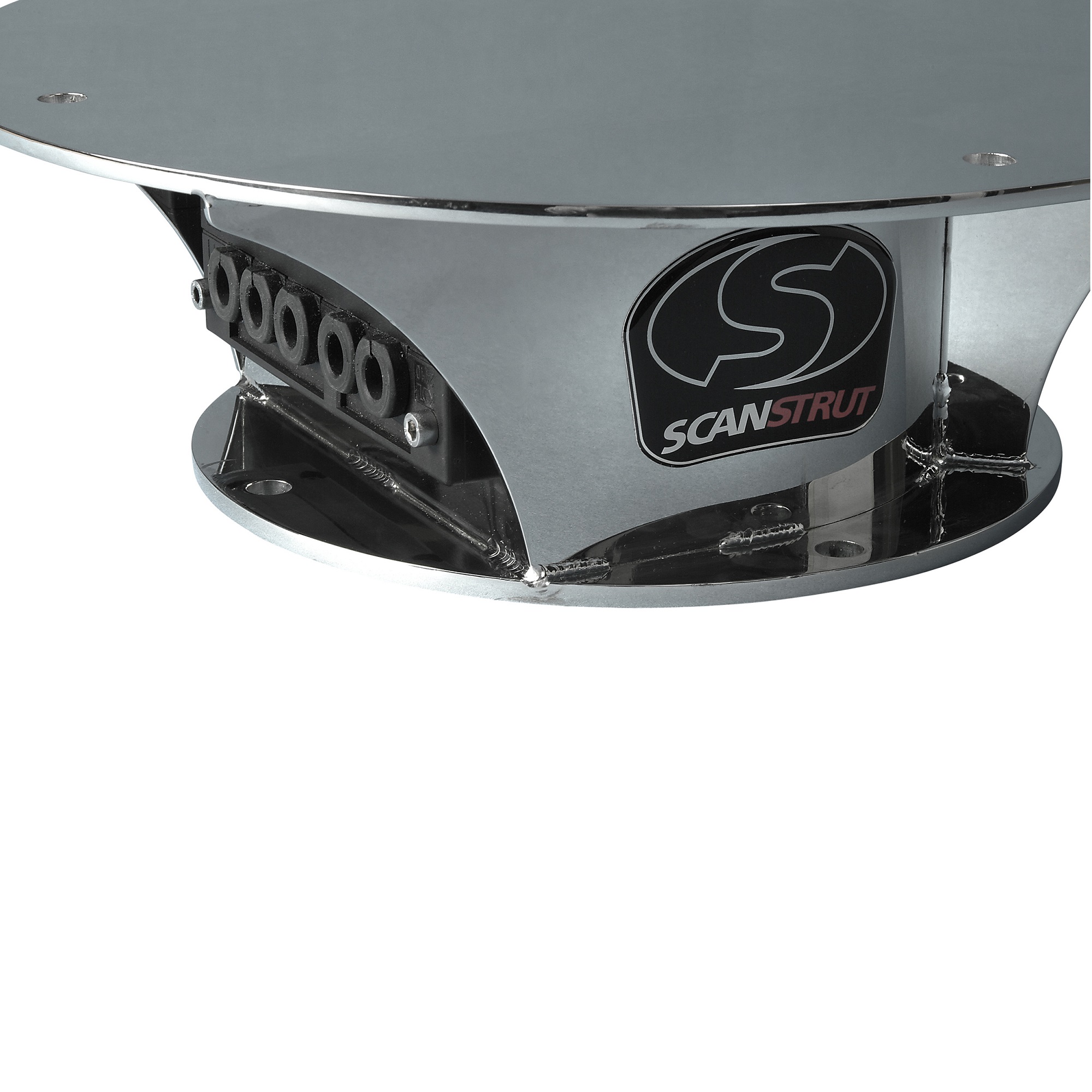

The SC80 offers an ultra-rugged option for mounting some of the world's premium Satcom technologies. With a unique cable gland system for up to five cables, all passing through a KDL cable lead-through, it gives the SC80 an IP68 rating.

The chosen antenna will attach via external fixings and pre-drilled mounting holes, making them easy to install and maintain. All cable routing for the antenna is done through the base of the stand with a clean and simple finish.
By using this mount, you will reduce the overall footprint of the Satcom antenna, this gives you more choice when choosing where to install it and also aids installation on narrow radar arcs.

• Made from 316 marine grade stainless steel
• mirror polished for hi-end finishes.
• Cables installed via KDL cable gland plate with IP68 protection degree for a complete watertight installation
• Raises the antenna by 80 mm, allowing the inspection hatch to be fully opened for easy cable connection
• 316 marine stainless steel

Only compatible with:
KVH: Fleet BB 500 / V7, V7IP (M9 matching dome), TracPhone V7-HTS, TracVision G8, TracVision M9, TracVision TV8
JRC: JUE-501 Fleetbroadband
