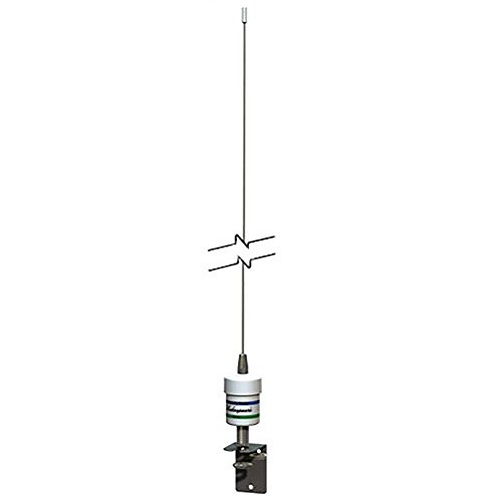

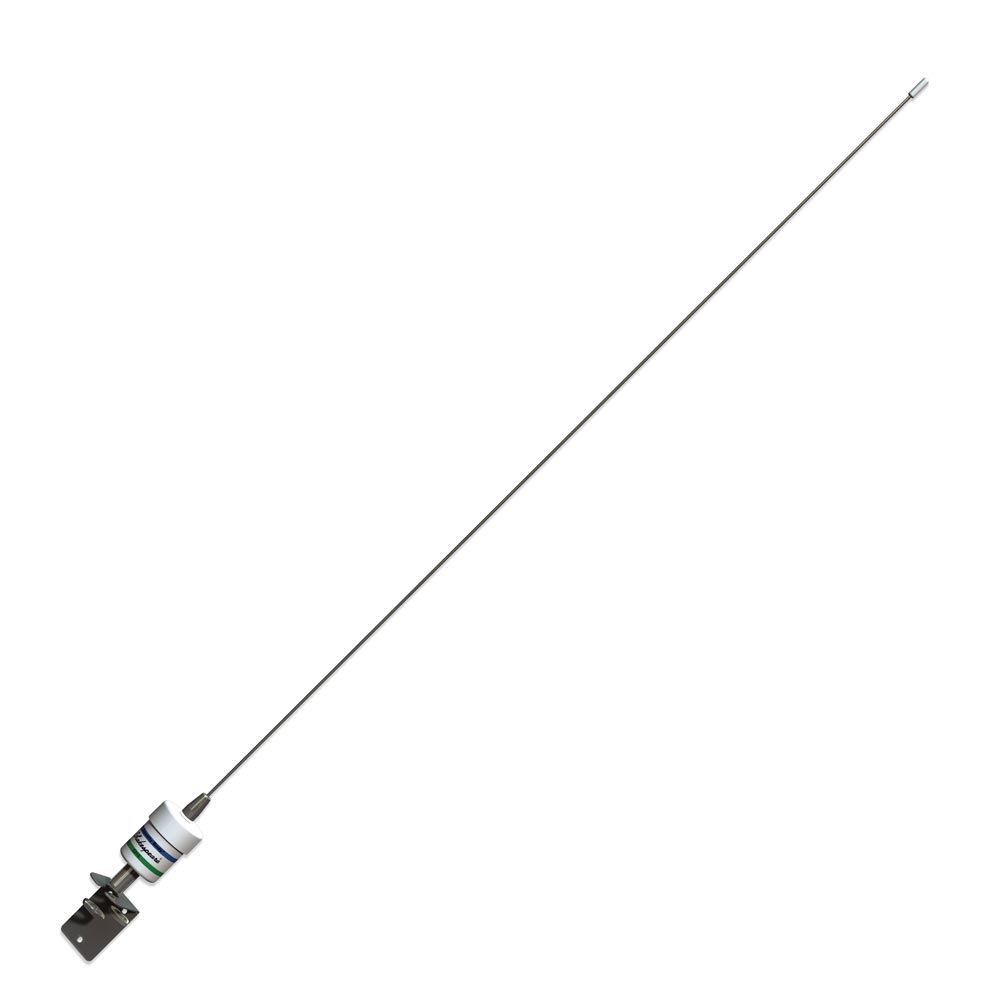

Shakespeare 5215D Stainless steel masthead VHF antenna

  • Code: 5215D
€ 87,00 € 108,58 -20%
VHF ANTENNA Shakespeare 5215D masthead whip stainless steel

Seasoned mariners and motor boaters realize that even the most expensive radio will perform poorly with a second-rate antenna that saves you money up front, but puts your ability to communicate when you need it most at risk. That's why they prefer the quality, performance and reliability of Shakespeare marine antennas.

VHF marine radios, with quality Shakespeare® antennas, are affordable and a primary requirement on most vessels. VHF equipment is installed on all large ships and most small seagoing vessels and is also used on rivers and lakes.
The VHF radio frequency range is 156.0 to 162.025 MHz.

Shakespeare Classic 5215 3ft VHF Marine Band 2dB
End fed 1/2 wave stainless steel whisk
A lightweight, low profile, stainless steel antenna specially designed for masthead mounting.
Sealed tinned copper wire coil
SO-239 connector
Stainless steel L-bracket supplied for mounting
  • Technical Features Shakespeare 5215 Squatty Body® Specifications
  • VHF marine band
  • Antenna Gain: 3dB
  • Maximum. Input power: 50 watts
  • SWR: nominally 1.5:1 at 156.8 MHz
  • Bandwidth: 7 MHz within 2.0:1 VSWR
  • Ferrule: L-bracket and locking nut, SO-239 connector
  • Polarity: Vertical
  • Impedance: 50 ohms
  • DC Ground: No DC Ground - The antenna will be open during the continuity test.
