Shakespeare 5104 VHF antenna 1,2mt 3dB

  • Code: 5104
Shakespeare
(0)
€ 125,00 € 157,38 -21%
add to favorites

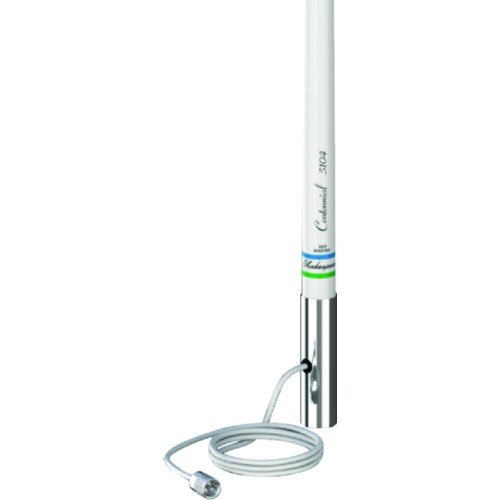

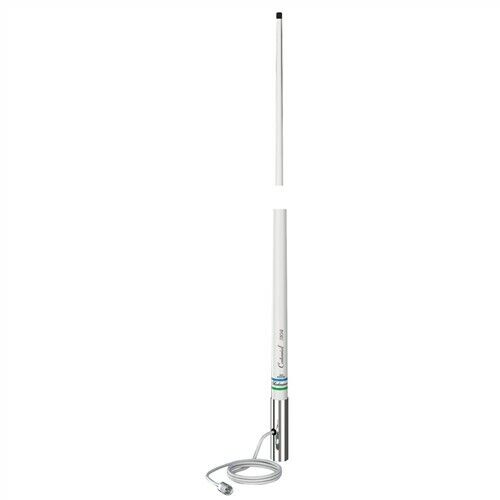

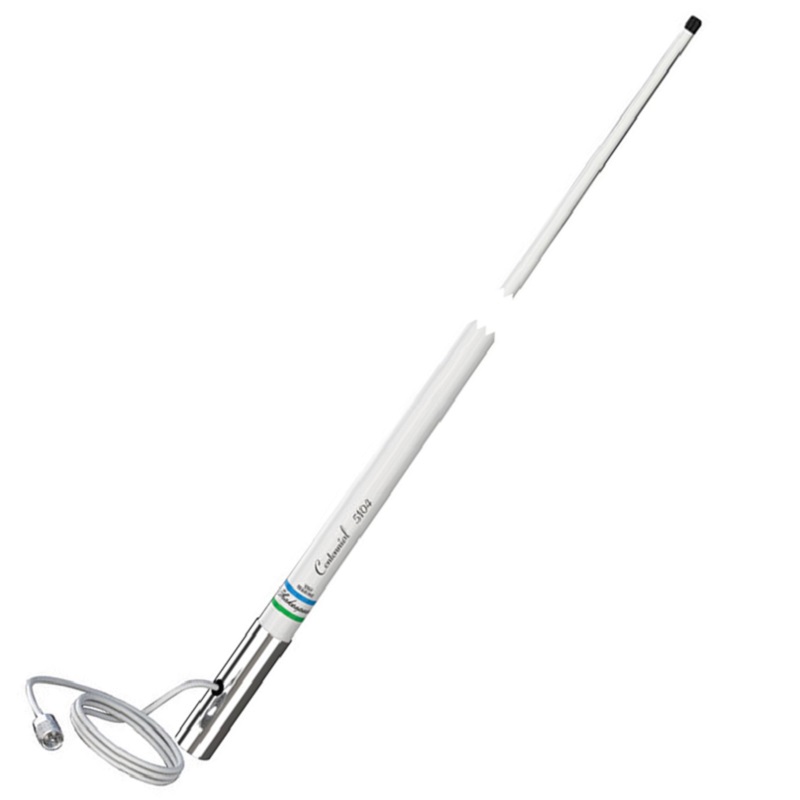

Shakespeare 5104 1,2mt Brass ferrule

1.2mt, 3dB antenna with a wide selection of high-end features. Brass and copper elements for high performance, plus a smooth, glossy polyurethane finish that won't yellow in the sun. Superb value and excellent performance in a great looking antenna.

Elements in brass and copper
Chromed brass ferrule with standard 1in-14 thread
Includes a 15-foot RG-58 cable, which can be cut to size, and a PL-259 connector
Smooth, durable and glossy finish

Technical specifications

Band: VHF marine band
Antenna gain: 3dB
Maximum input power: 50 watts
SWR: nominally 1.5: 1 at 156.8 MHz
Bandwidth: 5MHz within 2.0: 1 VSWR
Ring: chromed brass
Supplied coaxial: 15 feet of RG-58
Connector supplied: PL-259, not installed
Color / finish: white
Polarity: vertical
Impedance: 50 Ohm
