Shakespeare MD20 VHF antenna Mast head with cable

  • Code: MD20
Shakespeare
(0)
€ 145,00 € 181,78 -20%
add to favorites
VHF MD20 ANTENNA STILO INOX H. 0,90MT

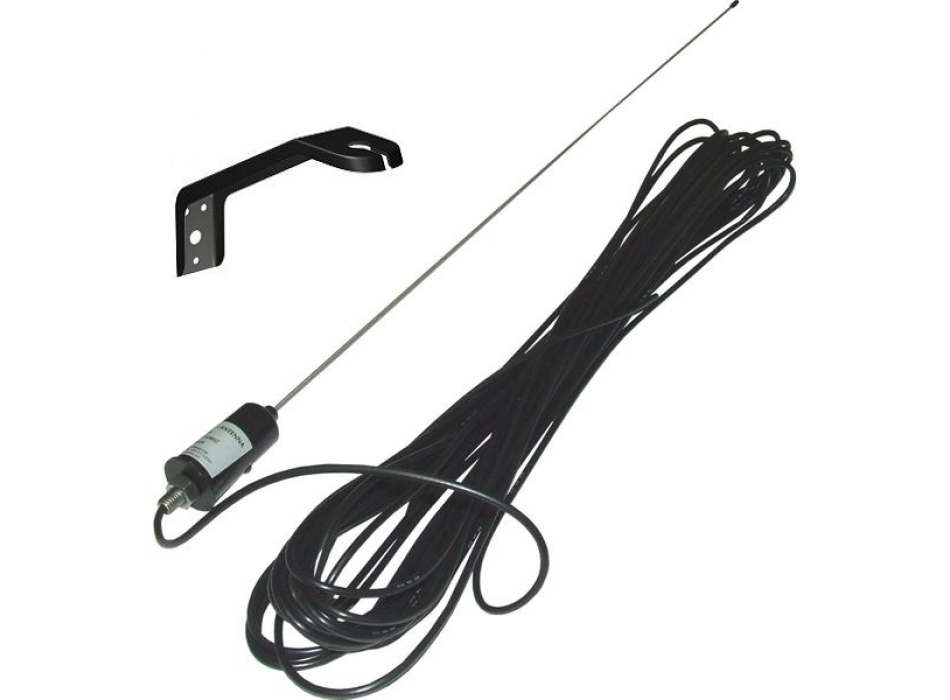

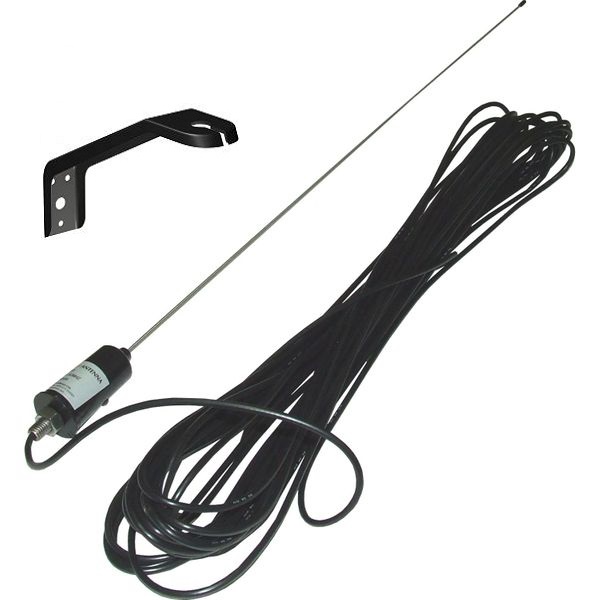

With 20mt cable

The Shakespeare V-Tronix MD 20 stainless steel whip VHF antenna has been designed to withstand the harshest conditions.
It is manufactured to the highest standards and quality. All vulnerable electrical parts are epoxy sealed to resist water ingress.
This Shakespeare antenna is especially designed for sailing boats, inflatable boats, motor boats and fishing boats.
Shakespeare boat antennas benefit from low angle techniques that increase signal range and effectively reduce energy waste. They insist on high quality and reliability, no matter how rough the seas are.


Stainless steel antenna:

- Light.
- Low drift.
- 180 mm nylon elbow bracket for masthead mounting.
- Robust watertight construction.
Technical specifications
Model MD20
Antenna cable 20 m (65-5 / 8 ft) RG-58 cable.
156-162 MHz frequency description
Ring nut M12 thread
Base diameter: 40 mm, thread: 12 mm
Ground DC Reading 10K ohm
Plug connector supplied PL-259
VSWR Antenna Nominally 1.5: 1 at 156.8 MHz
Maximum antenna input power 50 W
D. Buongiorno, chiedo cortesemente se potete indicarmi che differenza c'è tra questa antenna Shakespeare MD20 e il modello Shakespeare YWX che costa circa 45 € di meno. Prevedo di utilizzare l'antenna montata in testa d'albero su un natante a vela di circa 8 m di lunghezza. Grazie! Saluti. GV
R. 11-04-23 Buongiorno, l'antenna MD20 ha prestazioni superiori rispetto alla YWX, penso che per una navigazione costiera, vada bene anche la YWX. Cordiali saluti. Luigi Bianchi
D. Buongiorno, mi potrebbe dire o confermare se l'antenna è da 90 cm di lunghezza. Mi serve sapere anche il diametro del cavo. La classe mini650 da dei parametri da rispettare. Grazie saluti
R. 21-10-22 Buongiorno, confermo, antenna da 90cm, diametro del cavo RG58, 6mm di sezione. Cordiali saluti. Luigi Bianchi
