Simrad AP48 Autopilot Display

  • Code: 000-13894-001
€ 1.059,00 € 1.249,28 -15%

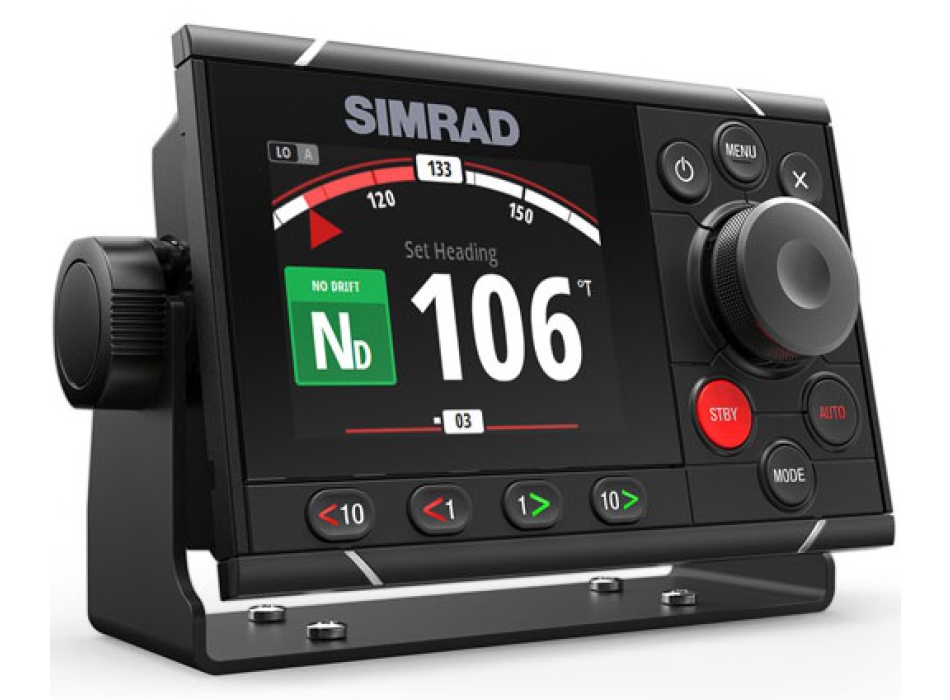

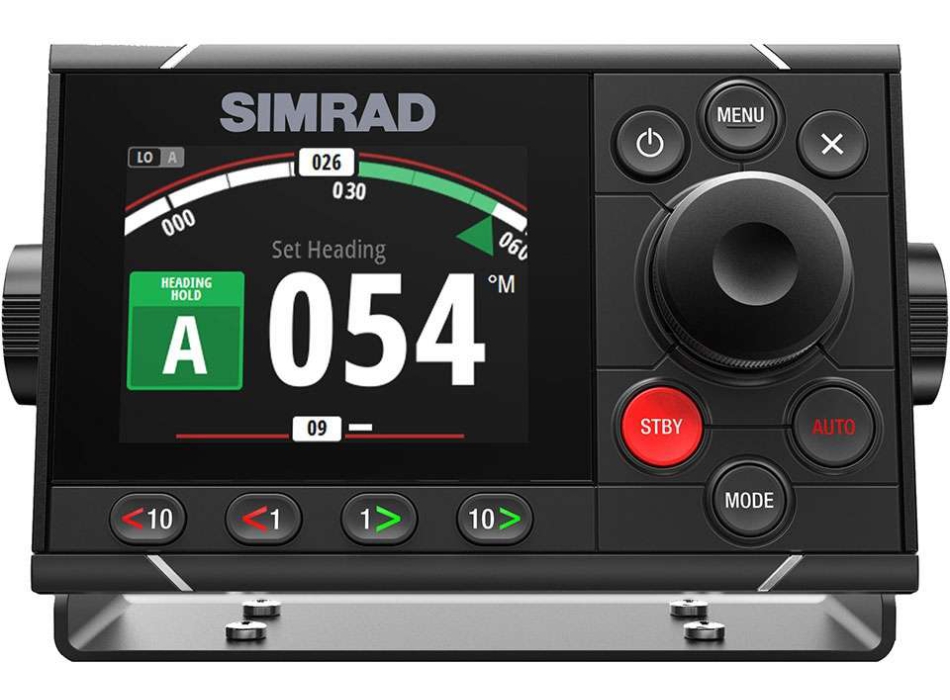

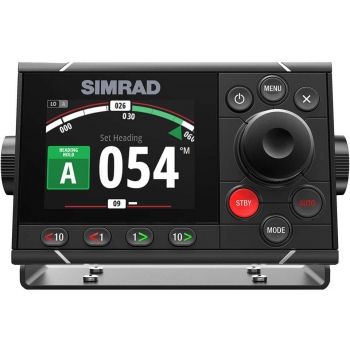

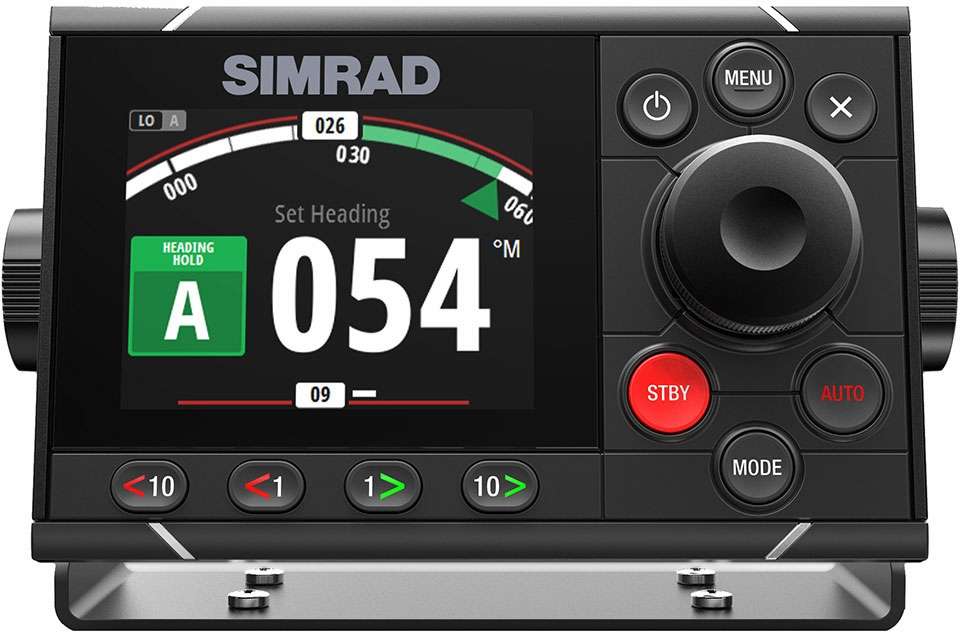

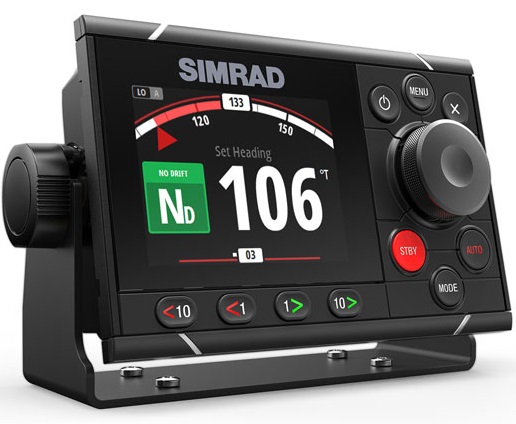

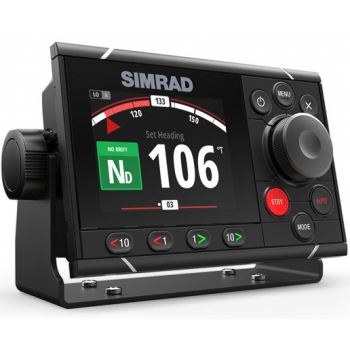

Simrad AP48 Autopilot Display

Simrad Display AP48
The AP48 autopilot controller is a dedicated control unit with advanced functions for Continuum autopilot systems, optimized with a modern design glass dashboard. Designed for maximum responsiveness and ease of use in all conditions, the AP48 features a large aluminum rotary knob with dedicated Dodge keys to adjust the port and starboard direction in 1 or 10 degree increments. Thanks to an optically coated 4.1 "display and intuitive controls, the AP48 also provides full access to advanced Continuum steering features, such as automatic steering patterns, No Drift steering and DCT (Depth Contour Tracking) and much more. even more.

Main features
Intuitive autopilot interface with full keypad
Large rotary knob for intensive use and precision steering
Continuum steering technology
4.1 "color display with optical coating
170 degree ultra wide viewing angle
Dedicated Dodge keys for 1 and 10 degree port / starboard adjustment
Automatic turn patterns for autonomous low-consumption maneuvers
No Drift steering to stay on course in case of leeway and drift
Depth Contour Tracking (DCT) steering for easier sinker or bottom fishing
Simplified installation through automatic tuning and calibration
Glass dashboard with slim profile
Certified NMEA 2000® connectivity
TECHNICAL SPECIFICATIONS

Approvals
CE 60945 compliant

Automatic pilot
Support for NMEA 2000 compass sensor
Integration of Volvo EVC, Yamaha, Optimus (Seastar) engine transmission systems
Maneuvers / Turn Patterns C-Turn, U-Turn, Spiral, Zigzag, Square, S-Turn, Depth Counter, Tack, Jibe
Driving Modes Heading, No Drift, Waypoint Steering (NAV), Wind, Power Steer (NFU, FU)

Connectivity
NMEA 2000 1 X NMEA2000 Micro-C port 5 LENS

Screen
Backlight color white
Resolution 320 x 240, 4: 3
600 nit screen brightness
Size and type 4.1 ", transflective TFT-LCD, bonded
Viewing angles 80 ° alto / down, 80 ° left / right

Electric
Energy consumption, max. 3W
Power consumption, typical 2.3W
Supply voltage 12V DC (10.8-15.6V DC)

Environment
Operating temperature range -25 ° to + 65ºC (-13 ° F to +149 ºF)
Storage temperature range -40 ° to + 85ºC (-40 ° F to + 185ºF)
IPx7 waterproof rating

MFD
Compass Safe Distance - Metric, Imperial 300MM (11.8 ")

Physicist
Dimensions (W x H x D) 177 x 115 x 56 mm (7 x 4.5 x 2.2 ")
Mounting Type Recessed, Bracket (optional)
Weight 0.51 kg (1.13 lbs)

Other
Warranty period 2 years
Keyboard and Maneuver interface
Languages English (United States), English (United Kingdom), Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Brazilian, Swedish, Afrikaans, Japanese, Korean, Simplified Chinese, Traditional Chinese, Bulgarian, Hebrew, Hungarian, Slovakian, Russian, Ukrainian
