Simrad Lowrance Transd. B60 0 Degree Tilt through Steel

  • Code: 000-13784-001
Lowrance
(0)
€ 465,00 € 547,78 -15%
add to favorites

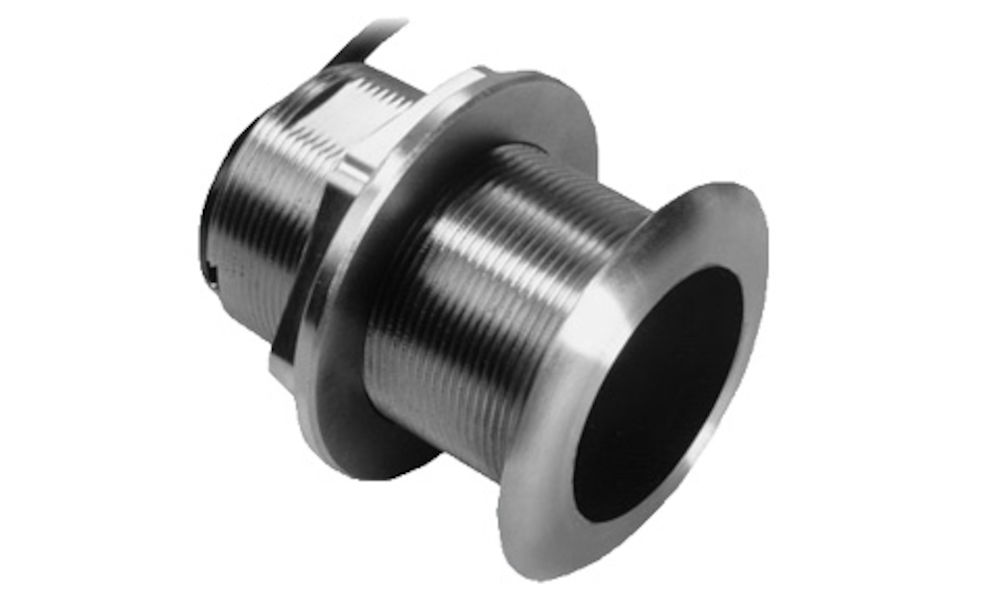

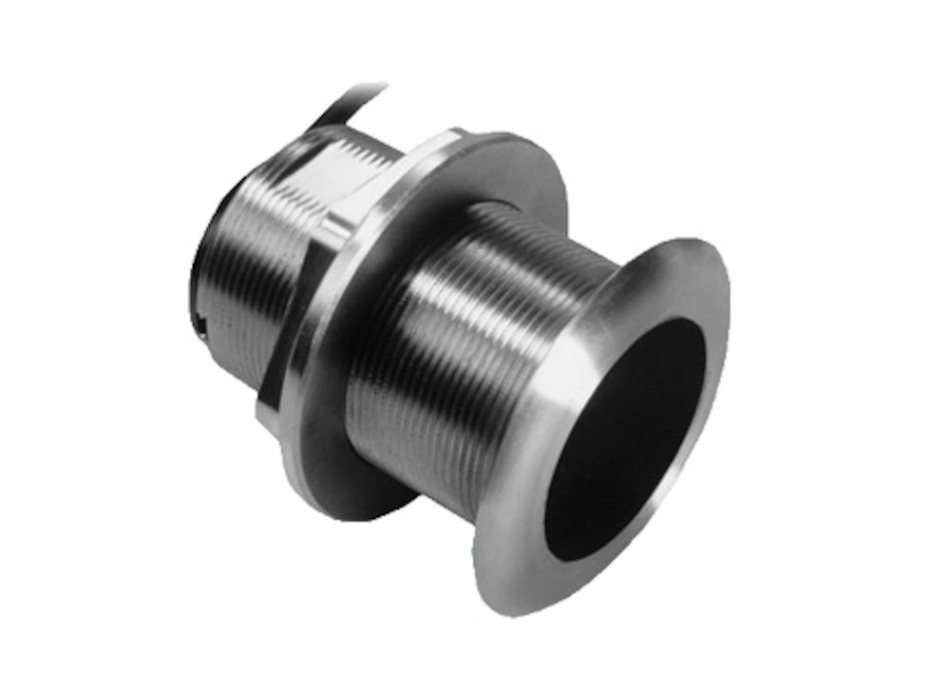

Simrad Lowrance Transducer B60 SS Through Steel 0 Degree Tilt

Through-hull transducer 0 tilt power 600 watt Depth / Temp connector X sonic 9 pin black freq. 50-200 khz.
The SS60 is a stainless steel, thru, inclined, dual frequency, depth and temperature transducer.
The ceramic element is internally tilted for hull tilt compensation, providing excellent echo returns for more accurate depth readings.

Main features

Black 9 pin sonic x connector

Depth / temperature
Double frequency
-Operates at 50kHz and 200kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Highly accurate
-Provides extremely accurate data.

0 ° inclination
-The 0 ° rake is ideal for boats with hull deadrise from 0 ° to 14 °.

Low profile
-Low profile housing minimizes drag with just 5mm of extension outside the hull.

Dimensions

Dimensions (W x H x D) 84 (d) x 95 mm (3.3 x 3.75)
Weight 1.4 kg (3 lb)

Freq and depth

Frequencies 50/200 kHz
Max Depth 350m (1200 ft) depending on Sonar

D. Buongiorno sig. Luigi, mi serve una consulenza: vorrei sapere se la ss60 si può montare su in lowrance hds-10 gen 1. Saluti
R. 10-11-23 Buonasera, sì confermo la compatibilità, necessario il cavo adattatore da 7PIN a xSonic: https://www.painestore.it/simrad_7pin_blue_xdcr_to_9pin_black_adapter Cordiali saluti. Luigi Bianchi
D. Buongiorno. Ho bisogno di questo trasduttore zero gradi per modulo black-box furuno d-ff1, è disponibile o ordinabile? Grazie Davide Riccardi
R. 10-11-23 Buongiorno, l'equivalente è il B117, di seguito link al sito: https://www.painestore.it/furuno_trasduttore_b117_pass_bronzo Cordiali saluti. Luigi Bianchi
D. Salve vorrei sapere se questo tipo di trasduttore è adattabile con un ecoscandaglio hook2 reveal grazie
R. 28-06-2021 Buonasera, Lowrance sconsigli l'abbinamento, anche sulla carta potrebbe essere fattibile, però temo che le prestazioni comunque non sarebbero soddisfacenti. Cordiali saluti. Luigi Bianchi
