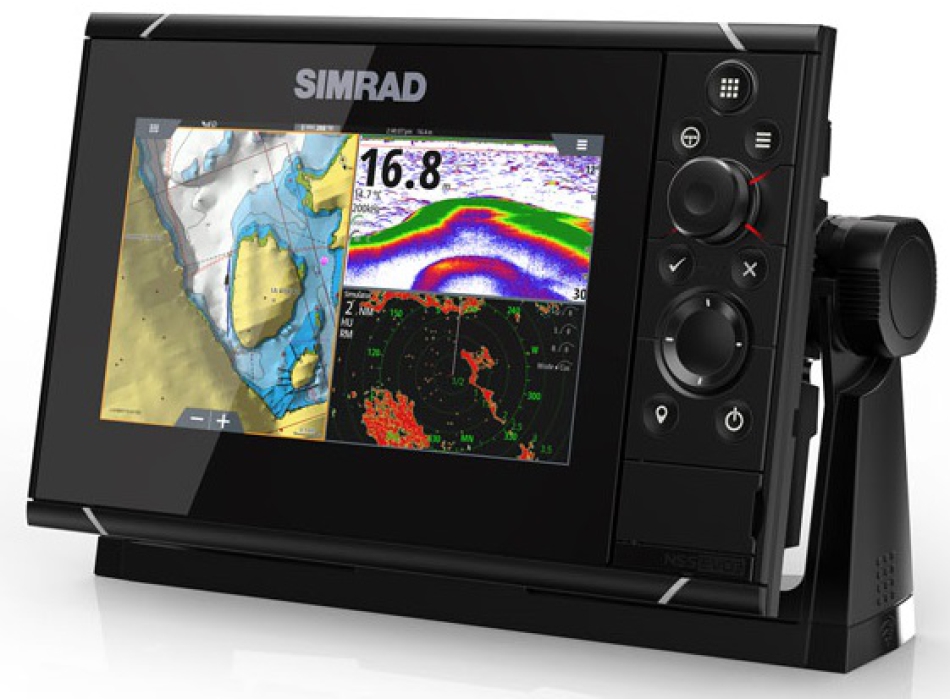

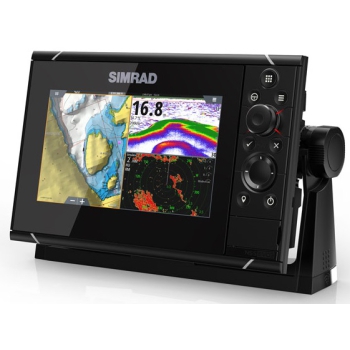

Simrad NSS 7 evo3
NSS evo3 allows you to navigate, control and enjoy an unprecedented level of integrated functionality. SolarMAX ™ HD display technology offers excellent clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and extended keypad for maximum control in any situation.
Main features: SolarMAX ™ widescreen HD display for lifelike colors
SolarMAX ™ 7-inch widescreen HD display

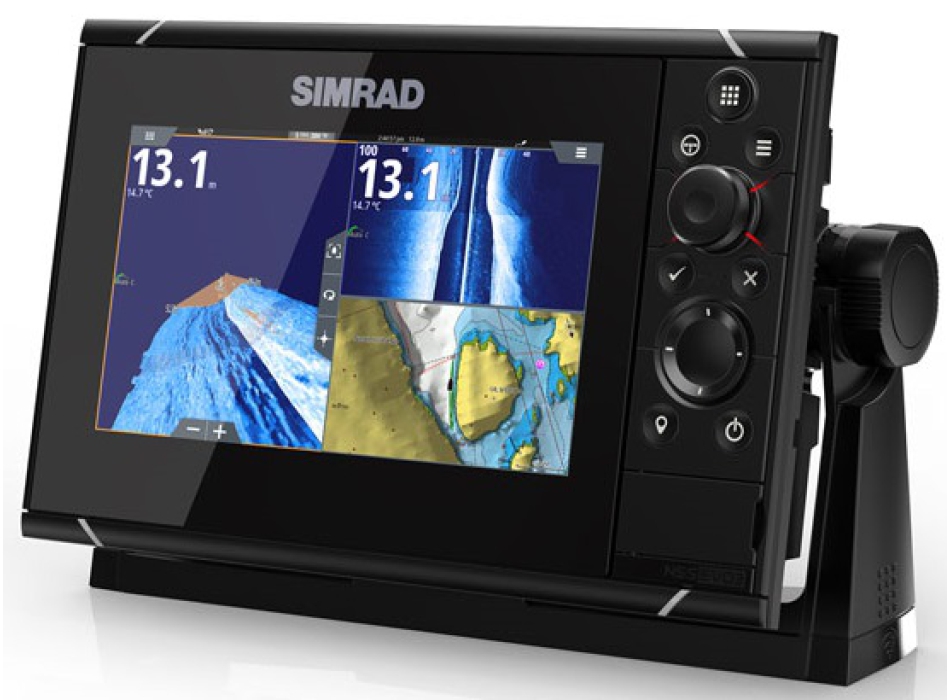

Reliable control in all conditions: the ability to toggle between multi-touch mode and a full keypad with a rotary knob

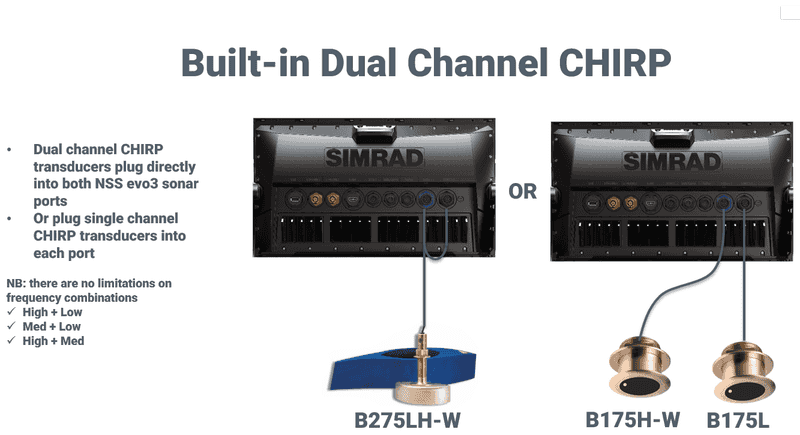

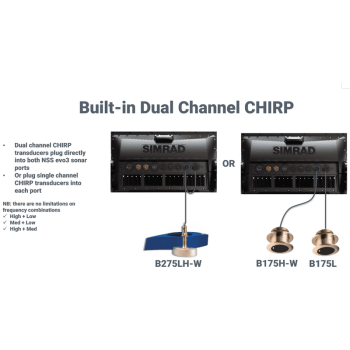

Integrated sonar with dual channel CHIRP sonar, ForwardScan® sonar and StructureScan® HD imaging
Added StructureScan® 3D imaging, advanced Broadband Sounder ™ features and more via Simrad modules
Get a wider view with Halo ™ Pulse Compression Radar, Broadband 3G ™ / 4G ™ and other Simrad solutions
Total control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
NMEA 2000® connectivity providing integrated engine monitoring, audio system control and more
Accurate navigation with a built-in 10Hz high gain GPS / GLONASS receiver
Easier boat trip planning with TripIntel ™ technology and support for Navionics Autorouting / Jeppesen Easy Routing
Integrated GoFree ™ Wi-Fi that provides online functions, smartphone monitoring and tablet control
Flush mount installation to provide a low profile Glass Bridge appearance or bracket mount to allow installation anywhere on the boat
SolarMAX ™ 7-inch widescreen HD display SolarMAX ™ HD display technology revolutionizes the way in-vehicle electronics are viewed with high definition and clear visibility regardless of operating conditions. Clear visibility is guaranteed from any position, sitting or standing, with a wide angle view. Bright LED backlighting and anti-reflective coating provide enhanced visibility during the day; SolarMAX ™ HD displays are designed to withstand the heat of the summer sun and are perfect for outdoor installations. These all weather screens feature a special optical glass that prevents condensation and fogging. The SolarMAX ™ HD display offers the best view in all weather and conditions.
Reliable control in any situation NSS evo3 displays allow you to take full control of your course. You can easily switch between control via various features of the intuitive touchscreen and the built-in rotary dial keypad. All functions of the display can be controlled via the touchscreen or keypad, giving you the flexibility to use the controls that best suit the current conditions and the activity in progress. The NSS evo3 keypad controls also allow you to lock the touchscreen and use a classic interface with buttons and a rotary knob, without the need for a separate keypad.
Integrated depth sounder The built-in sonar module supplied with every NSS evo3 display offers a wide range of Simrad sonar technologies suitable for many sport fishing and navigation applications. StructureScan® HD imaging combines DownScan and SideScan sonars to provide photo-quality images of fish structures while the award-winning ForwardScan® sonar provides a safer boating experience with a clear view of the seabed in front of the own boat. Broadband Sounder ™ technology offers CHIRP-compatible fish-sensing sonar, including support for all TotalScan ™ all-in-one transducers and dual-channel CHIRP transducers. Dual channel transducers provide coverage of multiple depth ranges and wider cones in a single unit, perfect for detecting specific parts of the water column in sport fishing applications. The two transducer ports allow simultaneous use of StructureScan® HD or ForwardScan® sonar and CHIRP or a traditional sonar.
Compatible with Simrad expansion modules NSS evo3 displays are compatible with Simrad expansion modules, including StructureScan® 3D imaging for changing fishing strategy, S5100 broadband sounder with CHIRP, and many other plug-and-play networking modules. Module functionality can be shared across multiple NSS evo3 displays while the ability to add modules at any time allows for easy expansion of the Simrad display system based on navigation interests and technology needs.
Checking the radar system Expand your view with Halo ™ Pulse Compression Radar, Broadband Radar ™ or other HD digital radar solutions. NSS evo3 displays integrate seamlessly with these networked Simrad radar solutions to provide a comprehensive radar interface with simple preset modes, custom manual tuning, MARPA target tracking, guard zones, overlay views and many other functions based on the chosen radar system.
Integration with Simrad autopilot Total control of the Simrad autopilot with the touchscreen or NSS evo3 keypad. You can set a course, hold course against wind and current, tack to a waypoint or follow a complex route with simple on-screen controls. NSS evo3 displays can be used as a single controller for a black box autopilot system or can be combined with dedicated autopilot controllers and wireless remote controls. A networked Simrad autopilot system can be controlled from any onboard NSS evo3 display, ideal for dual helm boats.
NMEA 2000® connectivity Industry-standard NMEA 2000® connectivity enables integration with a wide range of Simrad and third-party electronic components on board, including engine and fuel control capabilities, digital instrumentation, AIS integration, audio system control, and more.
Integrated 10 Hz GPS receiver All NSS evo3 displays include a high-gain, high-speed GPS / GLONASS receiver that updates its position ten times per second, ideal for precise tracking of fast motor boats. In bracket mount installations outdoors and in flush mount installations in several fiberglass vessels, this avoids the purchase and installation of a separate GPS receiver. An optional external GPS receiver can be used as an auxiliary position source or in some installations that prevent the receiver from getting a clear GPS signal.
Customizable function key The NSS evo3 display includes a user programmable function key that provides instant access to selected functions. You can then press a single button to access frequently used functions, such as navigation, autopilot or radar. Alternatively, you can assign the button to a function you want to have on hand, for example, create a MOB key for emergencies, a dedicated key for recording sonar logs for Insight Genesis, or a key to lock the touchscreen while using the keypad or an external controller. You can choose two functions: one for quick press and one for long press.
TripIntel ™ technology Designed for powerboats, TripIntel ™ technology tracks and displays the information you need to plan a safe and fun voyage. Make smarter decisions with fuel range superimposed on maps, easy access to current and future tide levels and a detailed history of previous trips. While cruising, the Cruise Performance Gauge makes it easy to adjust the throttle trim for maximum fuel economy and help you stay in the green zone, maximizing range and lowering fuel costs.
Simplified navigation thanks to autorouting Auto-routing offers the same convenience and simplicity of car navigation even on boats, allowing you to plot a route and leave with less delay. Simply select a destination and the NSS evo3 display will recommend the shortest and safest route taking into consideration the draft and size of the vessel. This feature is available with Navionics + or Navionics Platinum (Navionics Autorouting) maps and Jeppesen CMAP MAX-N + (Jeppesen Easy Routing) maps.
GoFree ™ Wi-Fi integrated Built-in GoFree ™ Wi-Fi enables online map downloads, Insight Genesis map creation and system-wide software updates. You can browse and purchase a wide range of chart options online from the GoFree ™ store and download charts directly to the display's memory card without leaving the helm. Sonar logs captured on the display can be uploaded directly to the Insight Genesis cloud service to create detailed custom charts - a perfect way to explore your favorite inland and coastal fishing areas. GoFree ™ online services can be used anywhere a Wi-Fi connection to the Internet is available.
Integration of smartphones and tablets with the GoFree ™ connection
While
General
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Cartography included World basemap (no detailed charts)
Languages Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
Other languages supported by Unlock:
Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
Cartography supported Insight, Navionics (Gold, NAV + Platinum +), C-MAP (MAX N, MAX N +) NV Digital (Raster US Charts)
Radar (inc. Compatibility) Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
External Storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Weather SiriusXM via WM-3 (USA only), GRIB
Internal Storage 16 GB

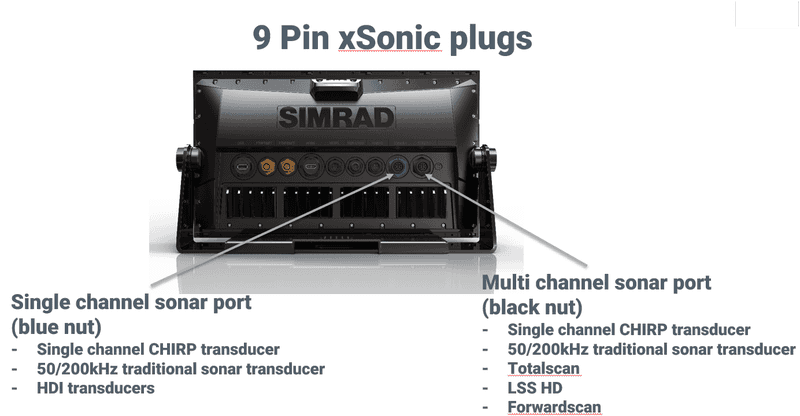

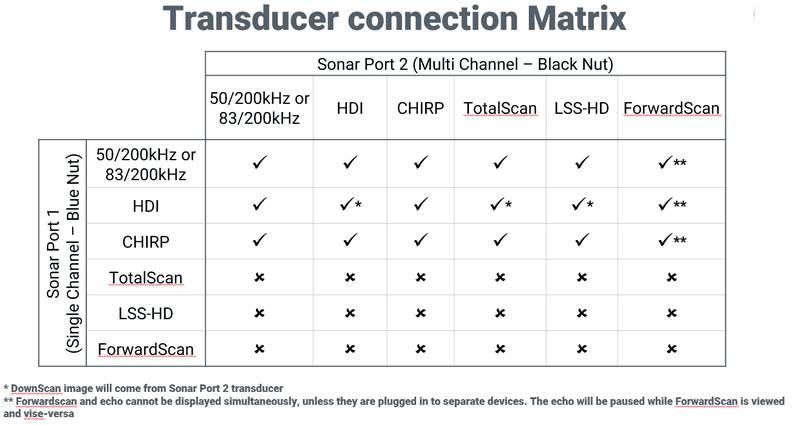

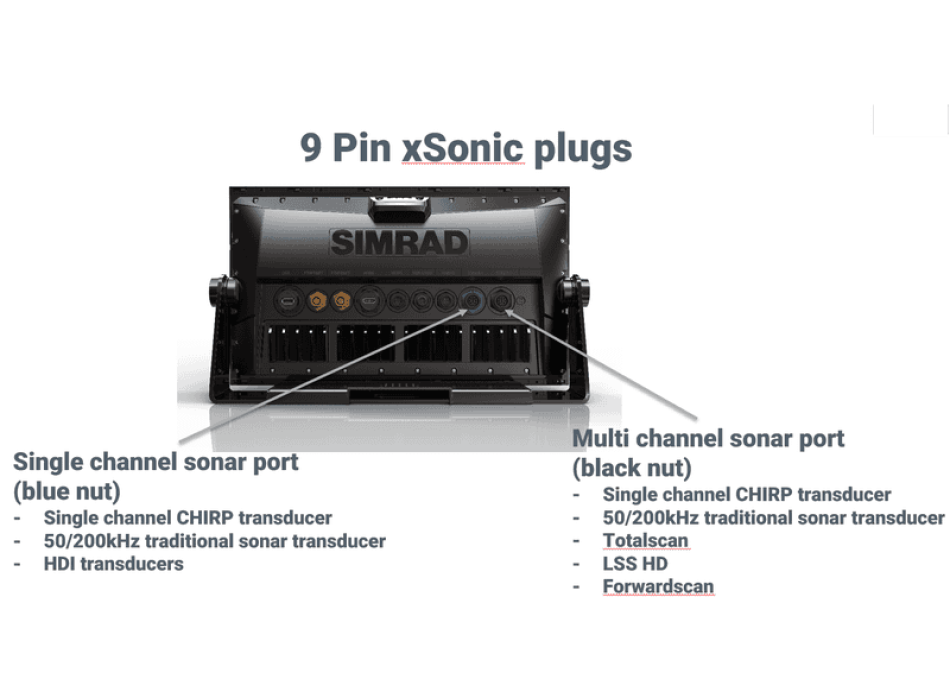

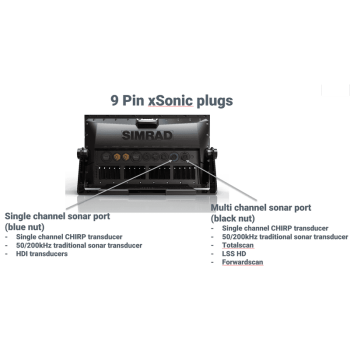

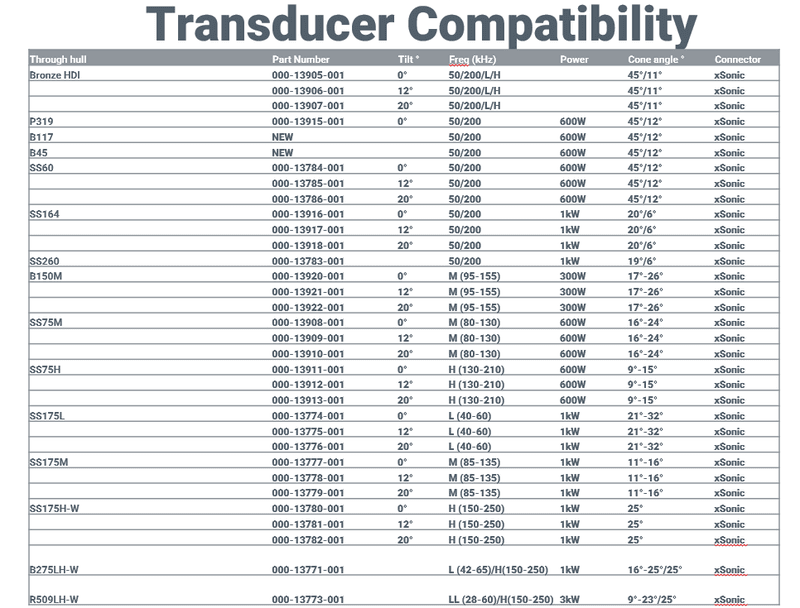

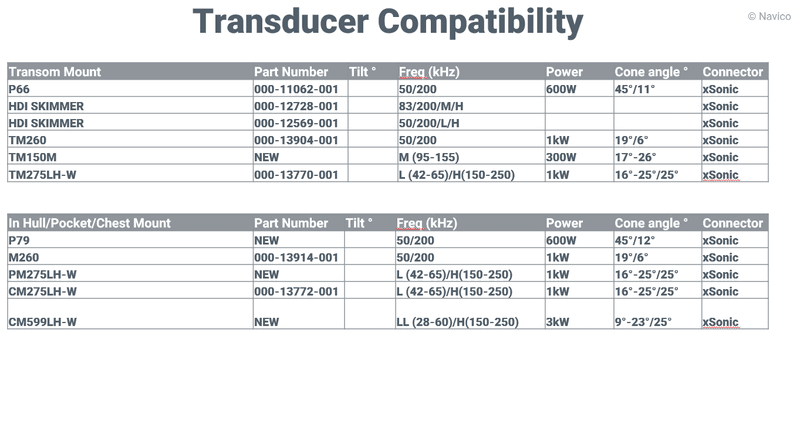

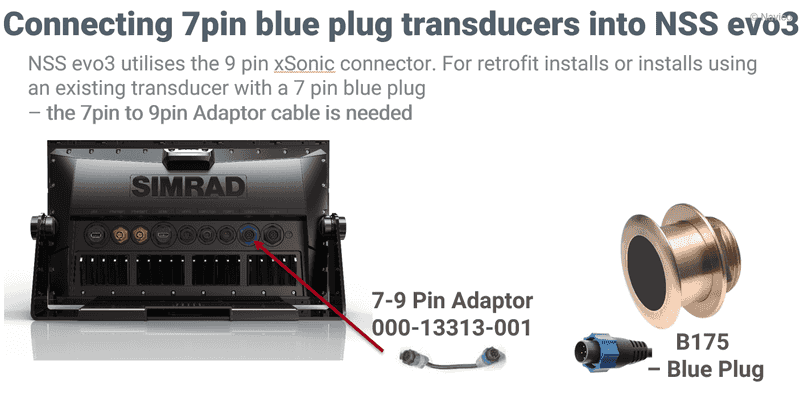

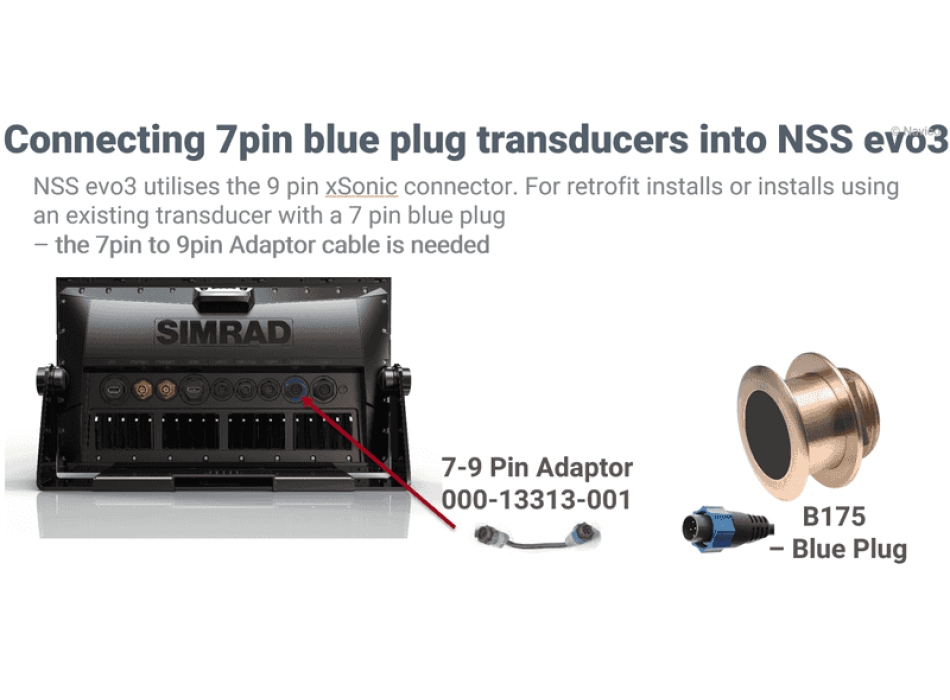

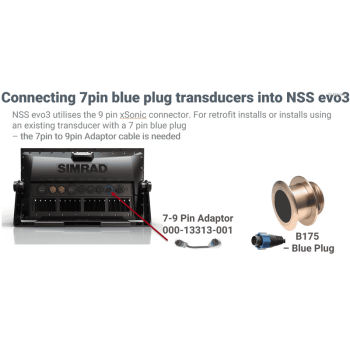

Sonar (inc. Compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.
Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
GPS Internal
AIS Receive AIS data over NMEA 2000 or * NMEA 0183 (* NMEA 0183 has to be wired to all NSS processors)
Warranty Period 2 Years
Interface Full touch screen (multi-touch) and full keypad control, OP50 remote controllers
Multimedia via SonicHub2, FusionLink, * Sirius, ** JL Audio. * USA only, ** AUST. & NZ only)
Autopilot Full auto pilot control and commissioning
Digital Switching BEP C-Zone, Naviop

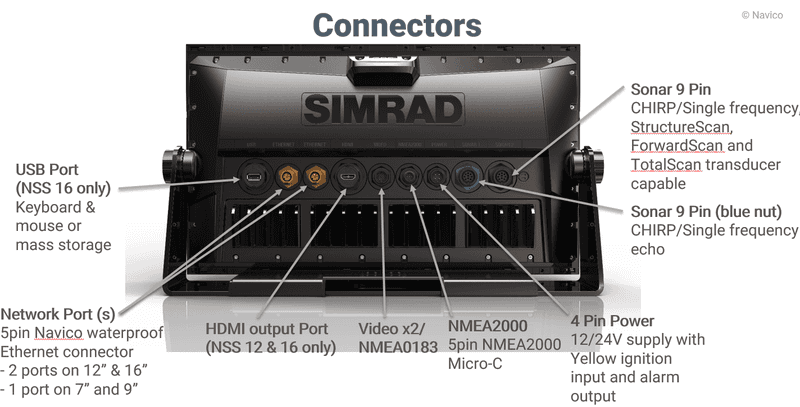

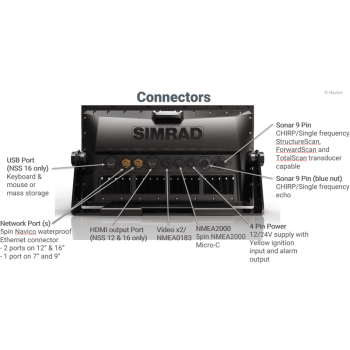

Network Connectors
N2K PGNs Receive only
59392 ISO Acknowledgment, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters , Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B "CS" Static Data Report, Part A, 129810 AIS Class B "CS" Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Sma ll Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,
Transmit and Receive:
61184 Parameter Request / Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading / Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs , 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration
Transmit only
65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route / Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration

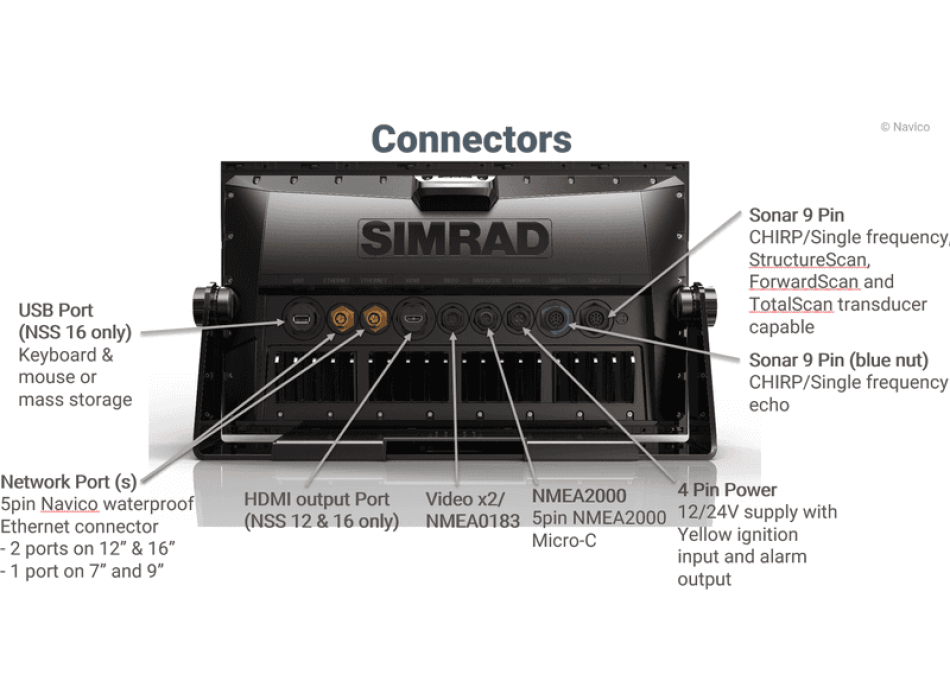

Ethernet 1 x 5 pin yellow connector x 1 Mbit
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P / N 000-00129-001)
NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)
Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Video 2 x composite (RCA connectors) video inputs. Optional video / data cable required (P / N 000-00129-001).
WiFi Internal
Bluetooth Internal
Techniques / Environmental
Dimensions (W x H x D) 239 x 150 x 90 mm (9.4 x 5.9 x 3.5inch)
With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66)
Mounting Type Bracket (Supplied) or panel mount
Weight 1.1 kg (2.42 lbs.)
Compliance CE, C-Tick, HDMI, EN 60950-1: 2006, EN 60945: 2002
EN 300 440-2, V1.4.2
Storage Temperature Range -20 ° C to + 60 ° C (4 ° F to 140 ° F)
Waterproof rating IPX6 and 7
Operating Temperature Range -15 ° C to + 55 ° C (5 ° F to 131 ° F) Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, * Wind, * Wind NAV . (* Boat type set to Sail)
Maneuvers / Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
GPS navigation
Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec
Correction WASS, MSAS, EGNOS, GLONASS
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 34 Channels
Update rate 10 Hz
Diet
Recommended Fuse Rating 5A
Supply Voltage 10 - 31.2 V DC
Display
Resolution 600 x 1024
Screen Size and Type High Visibility SolarMax HD® IPS 7inch optically bonded TFT
Backlight Color White
Viewing Angles 80 ° top / bottom, 80 ° left / right
